Alarm configuration

To configure your event rules and process data message of your streams, you must configure :

Context repository

Definition

The context repository is a database that allows storing user data that could be useful in the event rules definition and not present in the data messages. The context may include, for instance, thresholds definition, geographical zones, a list of device identifiers, a user preference, a group of contexts. The context has a key-value format. The key is a string and the value can be a primitive (string, numeric…​), a JSON object or an array. Optional tags are available to ease the search among the tenant contexts.

for geographical zones, a dedicated geozone database is provided. Once the user has provisioned his geozones, they are automatically available in the user context.

Context provisioning

The Live Objects API to manage context provisioning are described in the swagger documentation (Event processing - Context section) : https://liveobjects.orange-business.com/swagger-ui/index.html.

See a simple context example.

Context groups

A context value may reference other context keys. Instead of referencing each context individually, the rule can then reference the context group.

Example: See a context groups example.

extract context key

A context key is not necessarily hard coded in your rule. For instance, it can be extracted from your data message (using tags or device identifier).

Here, the context key is generated with the concatenation of the value.streamId field and a string.
 {"ctx" : {"cat":[{"var" : "value.streamId"},"alertingzone"]}}
Here, the context key is extracted from the value.tags field.
"ctx": { "get": [{"filter": [{"var": "value.tags"},"zone"]},0]}

Geozone repository

Definition

The Geozone repository is a database that allows the user to save his geographical sites/zones of interest. The geozones are stored as polygons (array of geopoints coordinates in decimal degrees). Meta information like a description and tags can be stored with the geozone.

Format:

  • coordinate order for polygon definition : use longitude as the first coordinate and latitude as the second coordinate.

  • the polygons are closed linestrings. Closed LineStrings have at least four coordinate pairs and specify the same position as the first and last coordinates.

Example of polygon :

[[[1.780892, 48.091452], [2.301382, 48.000565], [2.281961, 47.509630], [1.252634, 47.729556], [1.780892, 48.091452]]]

Provisioning

The Live Objects API to manage geozone provisioning are described in the swagger documentation (Event processing - Geozone section) : https://liveobjects.orange-business.com/swagger-ui/index.html.

Example:

PUT liveobjects.orange-business.com/api/v0/eventprocessing/geozones/grand-orleans
{
  "description": "my geozone grand Orleans",
  "geometry": {
    "coordinates": [[
        [1.780892, 48.091452],
        [2.301382, 48.000565],
        [2.281961, 47.509630],
        [1.252634, 47.729556],
        [1.780892, 48.091452]
        ]],
    "type": "Polygon"
  },
  "tags": ["zone-nord"]
}

  • Once a geozone is provisioned, it is available in the user context. Hence, it can be referenced in event processing rules or in groups of context.

  • When a geozone is updated, the modifications are immediately taken into account by the contexts or rules referencing the geozone.

Rules and JsonLogic syntax

A rule is a function applied on a data message in order to detect any significant change in the data (exceeding threshold, state modification, change of location). The rules in Simple Event Processsing and State Processing are defined within Live Objects plateform with the JsonLogic syntax.

the JsonLogic log operator has been deactivated.

Additional operators

In addition to the existing JsonLogic operators (logic and boolean operators, numeric operators, string operators, array operators), Live Objects provides geographic operators (distance, inside, insideindex, closeto, closetoindex), context operator (ctx) and miscellaneous operators (get, currentstate).

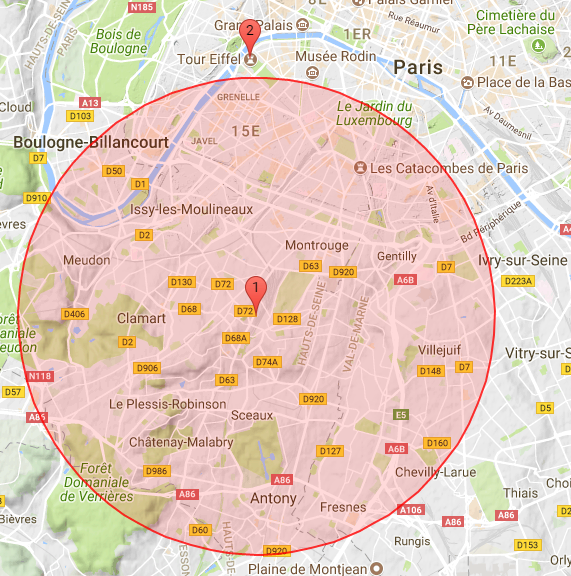

Table 1. distance
Name

distance

Description

Geographical operator. Returns the distance in meters between two points, given their latitude and longitude in decimal degrees.

Parameters

lon1, lat1, lon2, lat2 in decimal degrees

Logic


{
  ">" :
    {
      "distance" : [
        { "var" : "location.lon"},
        {"var" : "location.lat"},
        2.296565,
        48.800206
      ]
    },
    6000
  ]
}

Data

Eiffel Tower

{
  "location":{
     "lon" : 2.2945,
     "lat" : 48.8584
  }
}

inside

Result

true
Table 2. ctx
Name

ctx

Description

Retrieve, from the context repository, one or several values using a key or an array of keys. Several ctx operators can be nested (group of contexts).

Parameters

key or array of keys

Context

In the following example, "freezingThreshold" and "liquidThreshold" must have been provisioned in the tenant context before being used.

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/freezingThreshold
{
  "contextData": 0
}

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/liquidThreshold
{
  "contextData": 100
}

Logic


{
  "if": [
    {"<": [
      {"var":"value.temp"},
      {"ctx": "freezingThreshold"}
    ]},
    "ice",
    {"<": [
      {"ctx": "freezingThreshold"},
      {"var":"value.temp"},
      {"ctx": "liquidThreshold"}
    ]},
    "liquid",
    "gas"
  ]
}

Pre-requisite

Data


{
  "value":{"temp":55}
}

Result

"liquid"
Table 3. currentstate
Name

currentstate

Description

Retrieve the current state of a device when applying a stateProcessing function. For state processing rules only. In the following example, current state can be "cold", "normal" or "hot".

The example following logic function is an hysteresis :

if current state is not hot, transition to hot if value.temp > 100

if current state is hot, transition to normal if value.temp < 80

if value.temp < 0 transition to cold

Logic


{"if" : [
  {"and": [
    { "!==": [
      { "currentstate": [] },
      "hot"
    ]},
    {"<": [
      80,
      {"var": "value.temp"},100
    ]}
  ]},
  "normal",
  {"<": [
    {"var":"value.temp"},
    0
  ]},
  "cold",
  {"<": [
    {"var":"value.temp"},
    80
  ]},
  "normal",
  "hot"
]}

Data


{
  "value":{"temp":20.0}
}

Result

"normal"
Table 4. get
Name

get

Description

Returns the element at the specified position in an array.

Parameters

array, index in the array

Context

In the following example, an array containing latitude and longitude values must have been provisioned in the tenant context :

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/2geopoints
{
  "contextData": [48.800206, 2.296565, 48.800474, 2.295562]
}

Logic


{
  "distance": [
    {
      "get": [
        {"ctx": "2geopoints"}, <- lat1 in contextData value index 0
        0
      ]
    },
    {
      "get": [
        {"ctx": "2geopoints"}, <- lon1 in contextData value index 1
        1
      ]
    },
    {
      "get": [
        {"ctx": "2geopoints"}, <- lat2 in contextData value index 2
        2
      ]
    },
    {
      "get": [
        {"ctx": "2geopoints"}, <- lon2 in contextData value index 3
        3
      ]
    }
  ]
}

Data


 {}

Result

79 (distance between coordinates lat1,lon1 and lat2,lon2)

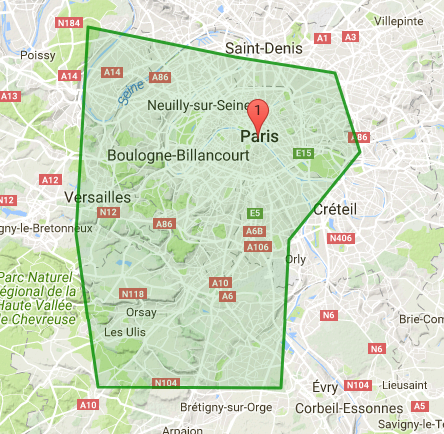

Table 5. inside
Name

inside

Description

Checks if a point defined by its latitude and longitude is inside a polygon (or at least one polygon if an array of polygons is provided as input parameter).

Parameters

longitude, latitude in decimal degrees for the point to be tested, polygon(s) defined by the coordinates of their vertices (lon, lat in decimal degrees).

Logic


{
  "inside": [
    {"var": "location.lon"},
    {"var": "location.lat"},
    [[
      [2.381121,48.627973],
      [2.129376,48.629499],
      [2.099351,48.768217],
      [2.116302,48.955198],
      [2.317994,48.927845],
      [2.455176,48.913357],
      [2.489472,48.841933],
      [2.392301,48.762871],
      [2.381121,48.627973]
    ]]
  ]
}

Data


{
  "location":{
    "lon":2.350350,
    "lat":48.854064
  }
}

inside

Result

true
Table 6. insideindex
Name

insideindex

Description

Checks if a point is inside an array of polygons. Returns the index of the first matching polygon. Returns -1 if no matching was found. This operator is usually in conjunction with the "get" operator which will return the matching polygon.

Parameters

longitude, latitude in decimal degrees for the point to be tested, array of polygons defined by the coordinates of their vertices (lon, lat in decimal degrees).

Context

In the example, an array containing latitude and longitude values must have been provisioned in the tenant context :

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/zone-nord
{
  "contextData": ["zone-grandparis", "zone-grandorleans"]
}

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/zone-grandparis
{
  "contextData": [[
    [2.381121, 48.627973],
    [2.129376, 48.629499],
    [2.099351, 48.768217],
    [2.116302, 48.955198],
    [2.317994, 48.927845],
    [2.455176, 48.913357],
    [2.489472, 48.841933],
    [2.392301, 48.762871],
    [2.381121, 48.627973]
  ]]
}

PUT liveobjects.orange-business.com/api/v0/eventprocessing/context/zone-grandorleans
{
  "contextData": [[
    [1.780892, 48.091452],
    [2.301382, 48.000565],
    [2.281961, 47.509630],
    [1.252634, 47.729556],
    [1.780892, 48.091452]
  ]]
}

Logic


{
  "get": [
    {
      "ctx": {
        "get": [
          {
            "filter": [
              {"var": "tags"},
              "zone"
            ]
          },
          0
        ]
      }
    },
    {
      "insideindex": [
        {"var": "location.lon"},
        {"var": "location.lat"},
        {
          "ctx": {
            "ctx": {
              "get": [
                {
                  "filter": [
                    {"var": "tags"},
                    "zone"
                  ]
                },
                0
              ]
            }
          }
        }
      ]
    }
  ]
}

}

Data


{
  "location":{
    "lat" : 48.854064,
    "lon" : 2.350350
  },
  "tags" : [
    "otherTag2",
    "zone-nord",
    "otherTag1"
  ]
}

Result

"zone-grandparis"
Table 7. closeto
Name

closeto

Description

Checks if a circle is close to a polygon or at least one of the polygons (polygon array).

Parameters

longitude, latitude (in decimal degrees for the circle center), circle radius, polygon or array of polygons

Logic


{
  "closeto": [
    { "var": "location.lon" },
    { "var": "location.lat" },
    { "var": "location.accuracy" },
    [
      [[
        [1.780892,48.091452],
        [2.301382,48.000565],
        [2.281961,47.509630],
        [1.252634,47.729556],
        [1.780892,48.091452]
      ]],
      [[
        [2.281961,47.509630],
        [1.252634,47.729556]
      ]],
      [[
        [2.22412,48.85863],
        [2.25219,48.88143],
        [2.28404,48.8785],
        [2.26816,48.86721],
        [2.2588,48.84913],
        [2.22859,48.85004],
        [2.22412,48.85863]
      ]]
    ]
  ]
}

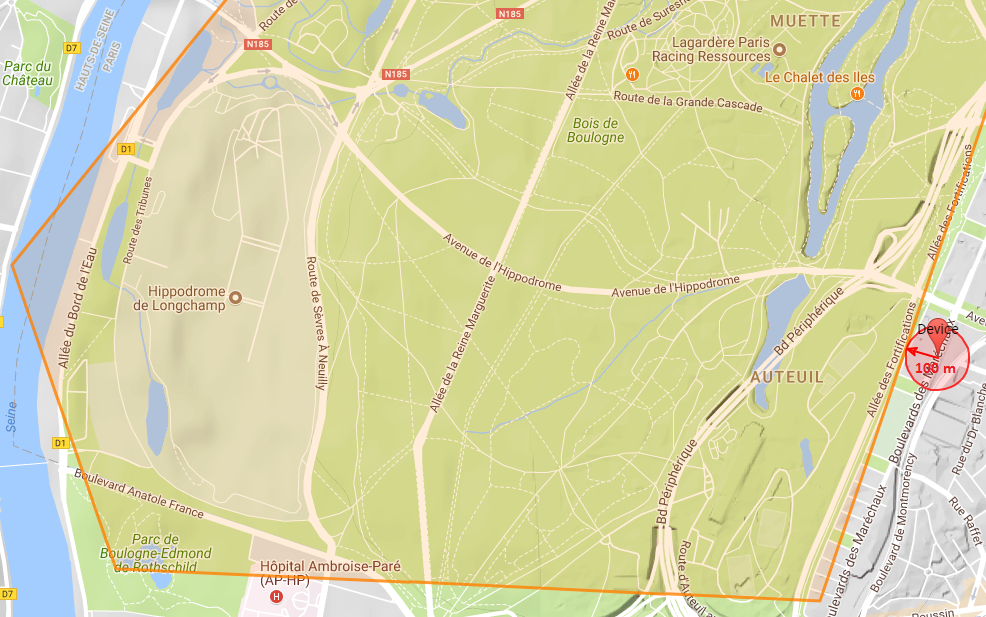

Data1 : circle center outside polygons, the circle does not intersect any polygon.


{
  "location":{
    "lon": 2.263849,
    "lat": 48.855983,
    "accuracy" : 100
  }
}

closeTo1

Result1

false

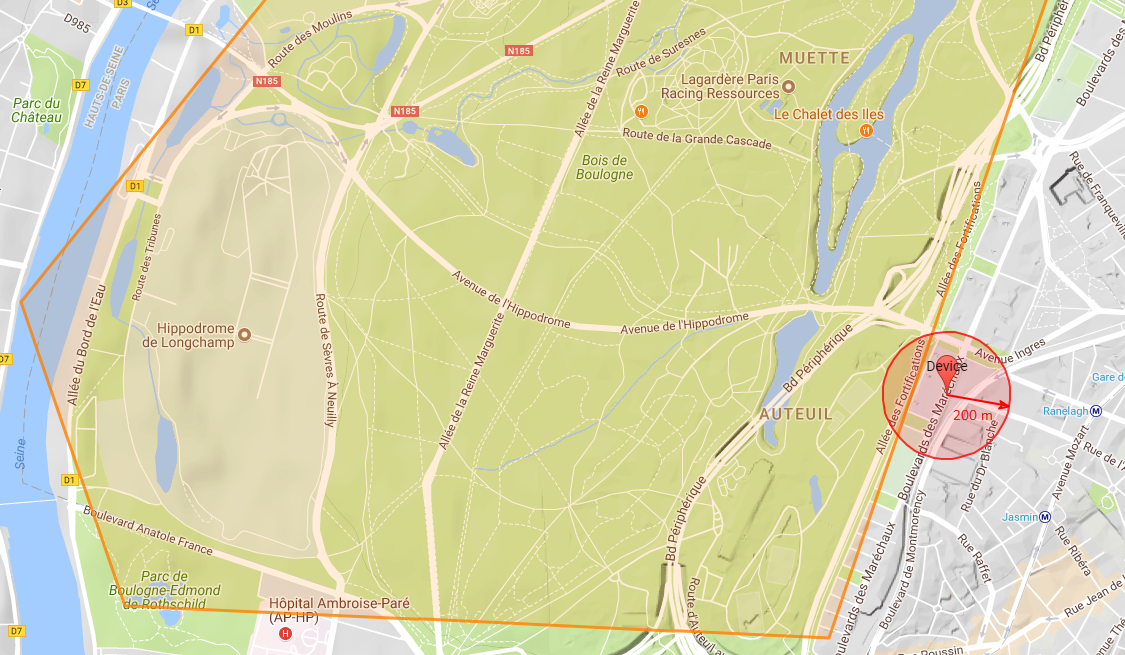

Data2 : circle center outside polygons, the circle intersects one polygon.


{
  "lon" : 2.263849,
  "lat" : 48.855983,
  "accuracy" : 200
}

closeTo2

Result2

true

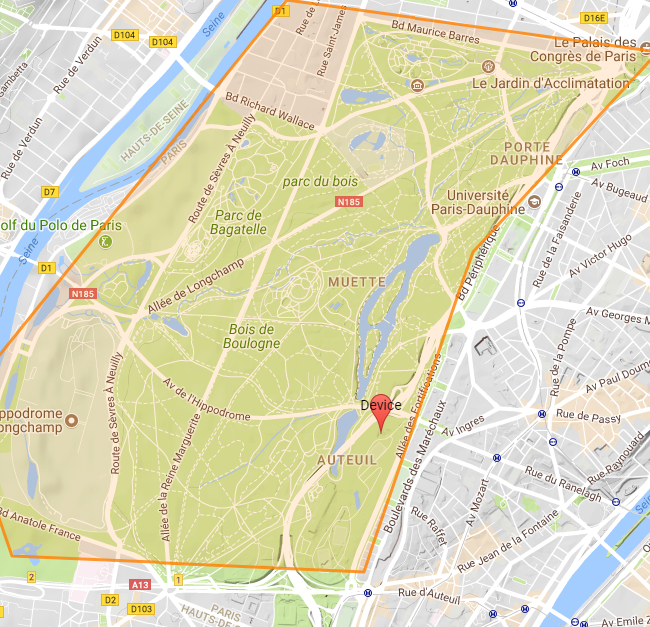

Data3 : a point inside one of the polygons.


{
  "lon" : 2.260265350341797,
  "lat" : 48.85693640789798,
  "accuracy" : 0
}

closeTo3

Result3

true
Table 8. closetoindex
Name

closetoindex

Description

Checks if a circle is close to an array of polygons. Returns the index of the first matching polygon (first index in the array is 0). Returns -1 if no matching was found.

Parameters

longitude, latitude (in decimal degrees for the circle center), circle radius, array of polygons

Logic


{ "
  closetoindex" : [
    { "var" : "location.lon"},
    { "var" : "location.lat"},
    { "var" : "location.accuracy"} ,
    [
      [[
        [1.780892, 48.091452],
        [2.301382, 48.000565],
        [2.281961, 47.509630],
        [1.252634, 47.729556],
        [1.780892, 48.091452]
      ]],
      [[
        [2.224120, 48.858630],
        [2.252190, 48.881430],
        [2.284040, 48.878500],
        [2.268160, 48.867210],
        [2.258800, 48.849130],
        [2.228590, 48.850040],
        [2.224120, 48.858630]
      ]]
    ]
  ]
}

N.B.: first polygon in the array is the Orleans area; 2nd polygon is the Paris area.

Data


{
  "location":{
    "lon" : 2.263849,
    "lat" : 48.855983,
    "accuracy" : 500
  }
}

closeToIndex1

Result

1
Table 9. now_utc
Name

now_utc

Description

Returns the processing time as ISO 8601 string.

Similar to javaScript new Date().toISOString()

Parameters

none

Logic


{
   "<=":[
      0,
      {
         "get_utc_hours":[
            {
               "now_utc":[

               ]
            }
         ]
      },
      12
   ]
}

Data


 {}

Result

true if processing hour is between 0 and 12
Table 10. get_utc_hours
Name

get_utc_hours

Description

Returns the hour of the ISO 8601 provided parameter .

Similar to javaScript new Date(param).getUTCHours()

Parameters

ISO 8601 String

Logic


{\"get_utc_hours\" : [\"2018-02-15T13:01:37.290Z\"]}

Data


 {}

Result

13
Table 11. • get_utc_minutes
Name

  • get_utc_minutes

Description

Returns the minutes of the ISO 8601 provided parameter .

Similar to javaScript new Date(param).getUTCMinutes()

Parameters

ISO 8601 String

Logic


{\"get_utc_minutes\" : [\"2018-02-15T13:01:37.290Z\"]}

Data


 {}

Result

1
Table 12. • get_utc_day
Name

  • get_utc_day

Description

Returns the day of the week of the ISO 8601 provided parameter .

Similar to javaScript new Date(param).getUTCDay()

Parameters

ISO 8601 String

Logic


{\"get_utc_day\" : [\"2018-02-15T13:01:37.290Z\"]}

Data


 {}

Result

4
Table 13. • get_utc_date
Name

  • get_utc_date

Description

Returns the day of the month of the ISO 8601 provided parameter .

Similar to javaScript new Date(a).getUTCDate()

Parameters

ISO 8601 String

Logic


{\"get_utc_day\" : [\"2018-02-15T13:01:37.290Z\"]}

Data


 {}

Result

15
Table 14. • get_time
Name

  • get_time

Description

Returns epoch (milliseconds) of the ISO 8601 provided parameter .

Similar to javaScript new Date(a).getTime()

Parameters

ISO 8601 String

Logic


{\"get_time\" : [\"2018-01-15T13:00:37.290Z\"]}

Data


 {}

Result

1516021237290.0

Action policy

Events related to the alarming on device activity/state change/event processing can be notified by email or sms. The notification triggering and actions are defined in an action policy, provisioned in Live Objects.

Provisioning

Please see the dedicated action policy swagger

To create a new action policy linked with an event rule :

Endpoint:

POST /api/v1/event2action/actionPolicies
An action policy has the following top level data representation (in this example, an event linked to state change event) :
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e"
    "name": "name-aea80c1d-5777-4e20-822c-5e6871f428e5",
    "enabled": true,
    "triggers": {
        "stateChange": {
            "version": 1,
            "filter": {
                "ruleIds": ["state-change-event-3422c5ac-de95-4727-855a-39d43902b7b3"]
            }
       }
    },
    "actions:" {
        "emails": [{
           "to": ["notification@orange.com"],
           "cc": ["cc@orange.com"],
           "cci": ["cci@orange.com"],
           "subjectTemplate": "State change for {{stateKey}}",
           "contentTemplate": "{{stateKey}} change from state {{previousState}} to state {{newState}} at {{timestamp}}"
        }],
        "sms": [{
            "destinationPhoneNumbers": ["+33601234567"],
            "contentTemplate": "{{stateKey}} new state {{newState}} at {{timestamp}}"
        }],
        "httpPush": [{
            "webhookUrl": "https://hooks.myservice.com/services/SOMEWEBHOOKREFERENCE",
            "headers": {"authorization": ["Bearer 00000000-0000-0000-0000-000000000000"]},
            "retryOnFailure": true,
            "content": "{\"text\": \"Devices {{deviceIds}} activity change triggered by activity rule: {{ruleIds}} : at {{timestamp}}\"}"
        }],
        "fifoPublish": [{
            "fifoName": "myFifo",
            "noRetention": false
        }],
        "azureEventHubs":[{
            "eventHubsNamespace": "myEventHubsNamespace",
            "eventHubName":"myEventHubName",
            "sharedAccessKeyName":"mySharedAccessKeyName",
            "sharedAccessKey":"mySharedAccessKey",
            "content":"{\"text\": \"Devices {{deviceIds}} activity change triggered by activity rule: {{ruleIds}} : at {{timestamp}}\"}",
            "retryOnFailure":false
        }]
      }
    }
}

The field id is auto generated by Live Objects and added in the POST response object.

field name is required description

name

optional

Defines a user friendly name for the action policy

enable

required

Enables or disables the action policy

triggers

required

Defines the type of trigger that will start an action. It can be one of the following :

  • deviceActivity

  • matchingFired

  • stateChange

Note: triggers object should have exactly one trigger defined.

actions

required

Object that defines the action that will be started upon a trigger activation
Note: actions object should not be empty. At least one action should be defined.

actions.emails

optional

A collection of Email actions (see Email notification section)

actions.sms

optional

A collection of SMS actions (see SMS notification section)

actions.httpPush

optional

A collection of HTTP push actions (see HTTP Push notification section)

actions.fifoPublish

optional

A collection of FIFO publish actions (see FIFO notification section)

actions.azureEventHubs

optional

A collection of Azure Event Hubs actions (see Azure Event Hubs notification section)

To retrieve your action policy:

Endpoint:

GET /api/v1/event2action/actionPolicies/{policyId}

Triggers

There are three kinds of rule event based triggers. You can either trigger an action on a fired event, a state changed event or a device activity event. This allows you to write complex matching, filtering, state or activity processing rules on your data and route chosen data to the desired actions.

An event trigger is represented by the id of the rule that will emit the corresponding event. You can specify multiple rule identifiers as trigger for one action policy.

Format

Table 15. Triggers
Type Triggered Filtering criteria

deviceActivity

on device activity event (example : activity state transition from "SILENT" to "ACTIVE")

"deviceIds": a list of device identifiers (as String) to be monitored,
"ruleIds": a list of activity rule identifiers (as String)

matchingFired

on simple event processing firing event

"ruleIds": a list of firing rule identifiers (as String)

stateChange

on state change event

"ruleIds": a list of state processing rule identifiers (as String)
When several criterias are present in a filter, they are combined with a AND boolean logic. OR operator is applied between each elements inside filter’s list.

Examples

Activity change

Example of action policy with a trigger on device activity change
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "deviceActivity": {
            "version": 1,
            "filter": {
                "deviceIds" :["device_identifier"],
                "ruleIds": ["activity-change-event-e64528bd-490e-405f-9c7f-0b80eda62ce5"]
            }
        }
    },
    "actions": {
        "emails": [{
            "to": ["to@orange.com"],
            "contentTemplate": "Event for Rule {{activityRule.name}} and device {{deviceAdditionalInfo.deviceName}}"
        }],
        "sms": [],
        "httpPush": [],
        "fifoPublish": []
    }
}
Example of event message sent (by email, http push, fifo, sms) by the action policy when it is triggered
{
    "type": "deviceActivity",
    "version": 1,
    "deviceId": "device_identifier",
    "deviceAdditionalInfo": {
        "deviceName": "deviceName",
        "groupPath": "groupPath"
    },
    "activityRule": {
        "id": "activity-change-event-e64528bd-490e-405f-9c7f-0b80eda62ce5",
        "name": "name"
    },
    "state": "SILENT",
    "timestamp": "2019-08-26T00:00:00.000Z",
    "numberOfAlarmReminders": 0
}

State change

Here is an example of an action policy with a trigger on a state change rule.
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "stateChange": {
          "version": 1,
          "filter": {
            "ruleIds": ["state-change-event-6a9a1b48-72da-4405-a65e-7e482abbe826"]
         }
    },
    "actions": {
        ...
    }
}
Example of event message sent by the action policy when it is triggered
{
    "type": "stateChange",
    "version": 1
    "tenantId": "it-2f2ab8e7-bd58-4423-adc1-efcba36faaa8",
    "stateKey": "stateKey",
    "previousState": "previousState",
    "newState": "newState",
    "timestamp": "2019-09-02T14:08:04.337Z",
    "stateProcessingRuleId": "state-change-event-6a9a1b48-72da-4405-a65e-7e482abbe826",
    "data": {
        "streamId": "streamId",
        "timestamp": "2019-09-02T14:08:04.334Z",
        "value": {
            "string": "input",
            "integer": 0
        },
        "type": "dataMessage",
        "version": 1
    }
}

Fired event (event processing)

Example of action policy
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "matchingFired": {
          "version": 1,
          "filter": {
            "ruleIds": [
              "firing-event-961a4bb5-c244-4df8-88cd-80c4e03c42b9", "10000000-0000-0000-0000-000000000001"
            ]
         }
    },
    "actions": {
        ...
    }
}
Example of event message sent by the action policy when it is triggered
{
    "type": "matchingFired",
    "version": 1,
    "tenantId": "it-cbe67009-7653-4c5e-9762-58b2afe0240d",
    "timestamp": "2019-09-02T13:55:17.433Z",
    "firingRule": {
        "id": "firing-event-961a4bb5-c244-4df8-88cd-80c4e03c42b9"
    },
    "matchingContext": {
        "tenantId": "it-cbe67009-7653-4c5e-9762-58b2afe0240d",
        "timestamp": "2019-09-02T13:55:17.433Z",
        "matchingRule": {
            "id": "cc76a37a-1b18-45f9-8356-7733d9ccbc3b"
        },
        "data": {
            "streamId": "streamId",
            "timestamp": "2019-09-02T13:55:17.426Z",
            "value": {
                "string": "debug",
                "integer": 100
            },
            "type": "dataMessage",
            "version": 1
        }
    }

}

Actions

An action, within an action policy, will define what to do upon trigger activation. An action is always passed the data message or the event that triggered it as datacontext for templating purpose or cherry picking a particular field within that data. Some actions give you the ability to template their output. The templating language used is Mustache. You can use fields of your triggering data (event or message) by leveraging the mustache variable mechanism.

Email notification

This action serves the purpose of sending email to one or multiple recipients when a trigger is activated.

Representation of an email action
{
    "to": [] of String,
    "cc": [] of String,
    "cci": [] of String,
    "subjectTemplate": String,
    "contentTemplate": String
}

to

A List of String each representing a valid email

cc

A List of String each representing a valid email

cci

A List of String each representing a valid email

subjectTemplate

A string representing a Mustache template. This will be use to render the email subject.

contentTemplate

A string representing a Mustache template. This will to render the email content.
Example of an action policy sending an email on a state change event
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "stateChange": {
            "filter": {
                "ruleIds": ["22222222-2222-2222-2222-222222222222"]
            },
            "version": 1
        }
    },
    "actions":
    {
        "emails": [{
            "to": ["notification@orange.com"],
            "cc": ["cc@orange.com"],
            "cci": ["cci@orange.com"],
            "subjectTemplate": "State change for {{stateKey}}",
            "contentTemplate": "{{stateKey}} change from state {{previousState}} to state {{newState}} at {{timestamp}}"
    }
}

In this example, the fields stateKey, previousState, newState, timestamp are referencing the event message which generates the notification. The event message is available in the data context of the notification process.

SMS notification

This action serves the purpose of sending sms to one or multiple recipients (MSISDNs) when a trigger is activated.

Representation of an SMS action
{
    "destinationPhoneNumbers": [] of String,
    "contentTemplate": String
}

destinationPhoneNumbers

a collection of string representing each a recipient msisdn

contentTemplate

A string representing a Mustache template. It will be rendered as the sms content.
Example of an action policy sending an sms on a fired event
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "matchingFired": {
            "filter": {
                "ruleIds": ["22222222-2222-2222-2222-222222222222"]
            },
            "version": 1
        }
    },
    "actions":
    {
        "sms": [{
                "destinationPhoneNumbers": ["+33123456789"],
                "contentTemplate": "Event fired at {{timestamp}} with value : {{value}}"
            }]
    }
}

HTTP Push notification

This action serves the purpose of sending a message to a webhook server when a trigger is activated.

Representation of an HTTP Push action
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
        "deviceActivity": {
            "filter": {
                "deviceIds": ["urn:lo:nsid:sensor:temp001"],
                "ruleIds": ["22222222-2222-2222-2222-222222222222"]
            },
            "version": 1
        }
    },
    "actions": {
        "httpPush": [{
            "webhookUrl": "https://hooks.myservice.com/services/SOMEWEBHOOKREFERENCE",
            "headers": {"authorization": ["Bearer 00000000-0000-0000-0000-000000000000"]},
            "retryOnFailure": true,
            "content": "{\"text\": \"Devices {{deviceIds}} activity change triggered by activity rule: {{ruleIds}} : at {{timestamp}}\"}"
        }]
    }
}

FIFO notification

This action serves the purpose of sending a message to a FIFO when a trigger is activated.

Representation of a FIFO action
{
    "fifoName": String,
    "noRetention": Boolean
}

fifoName

Name of the FIFO to send the message to. See FIFO usage to consume messages

noRetention

If true, messages will be immediately dropped if there is no active subscription to the FIFO at the time of message publication. If false, messages will be persisted on disk until consumed or expired based on the expiration delay defined in your offer settings.
Representation of sending an event message to a FIFO
{
    "id": "6c95837b-251d-41d8-95f1-42facdf8e71e",
    "name": "some_user_friendly_name",
    "enabled": true,
    "triggers": {
       "deviceStatus": {
          "version": 1,
          "filter": {
             "connectors": ["mqtt"],
             "groupPaths": [{"path": "/lyon", "includeSubPath": true}]
          }
       }
    },
    "actions": {
        "fifoPublish": [{
            "fifoName": "myFifo",
            "noRetention": false
        }]
    }
}

Azure Event Hubs notification

This action serves the purpose of sending a message to an Azure Event Hub instance when a trigger is activated.

Representation of sending an event message to an Azure Event Hub
{
   "name": "some_user_friendly_name",
   "enabled": true,
   "triggers": {
      "dataMessage": {
         "version": 1
      }
   },
   "actions": {
      "azureEventHubs": [
         {
            "eventHubsNamespace": "myEventHubsNamespace",
            "eventHubName": "myEventHubName",
            "sharedAccessKeyName": "mySharedAccessKeyName",
            "sharedAccessKey": "mySharedAccessKey",
            "content": "{\"text\": \"new message sent by device {{metadata.source}} at {{timestamp}}\"}",
            "retryOnFailure": false
         }
      ]
   }
}

Datacontexts for templating

Actions template can have 3 kinds of data contexts :

These are used as the root object of the mustache templating engine.

Version 2026.7.0 • Updated date 2026-08-11 12:37:29 UTC
